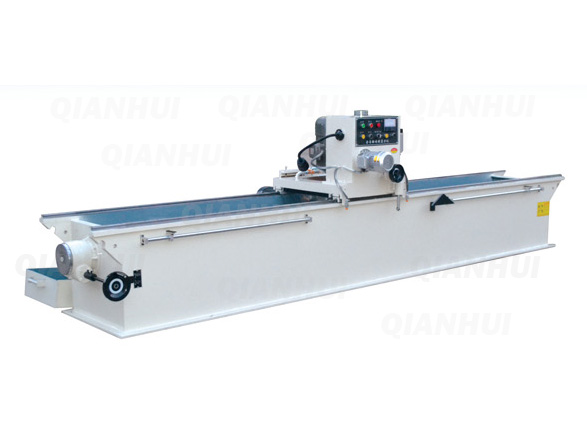

Electromagnetic Knife Grinder Blade Sharpener Machine

Model No.

BM1600

Grinding Length

 ≤1600mm

Grinding Width

≤250mm

Grind Wheel Size

φ200x110xφ32mm

Worktable Rotate Angle

0-90°

Grind Head Rotate Angle

±90°

Grind Straightness Accuracy

＜0.05mm/m

Grind Head Motor

3.0kw  (1440 rpm)

Moving Motor

0.75kw

Moving Speed

0-12m/min

Cooling Pump Motor

0.25kw

Dimension

3200xx1000x1250mm

Weight

1450kg

Key Features:

1.The knife grinder machine is mainly used in woodworking industry,paper making industry,printing industry,plastic industry,leather industry,metallurgy   industry,

2.We can also make knife grinder for grinding knife length   2.0m,2.6m,3.2m,4.0m,5.0m,6.0m,7.0m until 10m

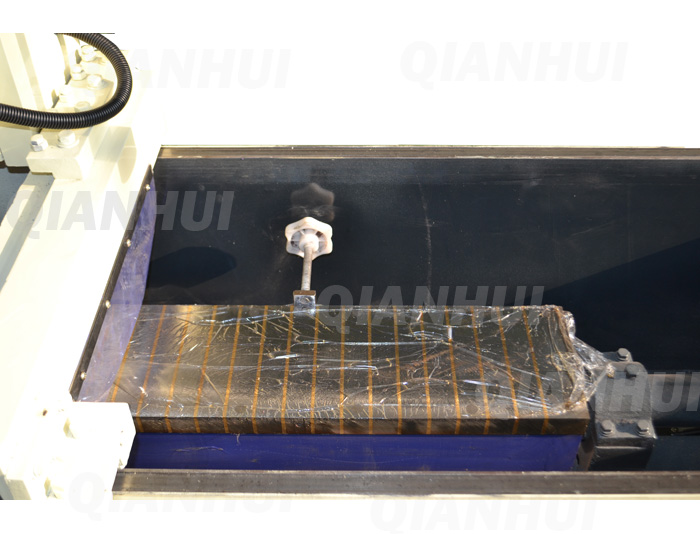

3.It uses the electromagnetic sucker worktable,suction is homogeneous,knife will not be distorted,grinding straightness accuracy is higher.

4.The electromagnetic sucker adopts the worm and gear drive system,driving mobility is better,angle rotating is accurate,and the big shaft structure makes it running stably.

5.The main frame is integrated-welded,which is resistant to deformation

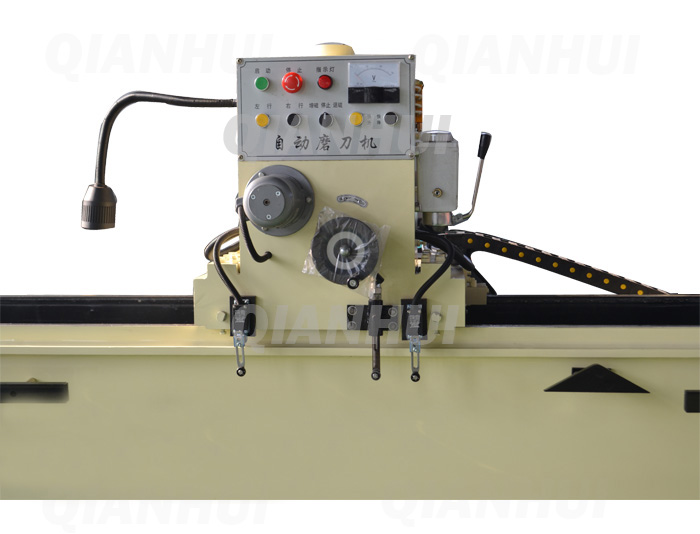

6.The grinding head and sliding table is made of cast steel,the central lubrication system keeps the machines lubricated well

7.The sliding rod is made wearable steel bar,this makes the table runs stably and   accurately.
